Name of product
Still an important and relevant system today, EntryPass Serial Communicators enables transmission of information between computers or between computers and peripheral devices one bit at a time over a single line, either synchronous or asynchronous. Our range of Serial Communication devices varies from integrated controllers with built-in readers to advanced 4 readers control panel and even hybrid input/output control panels to suit your specific needs and requirements.
Key Features
DOOR INTERLOCKING
2 In doors interlocking within the control panel, no external wiring is needed. Cross-board interlocking is achievable by checking the interlocking signal coming from second control panel before granting the accessibility to the local control panel.
DYNAMIC STORAGE ALLOCATION (DSA)
DSA empower system administrator to modify the factory preset card holder and event storage database whenever necessary. Result of such modification leads a more personalized usage of the control panel whenever needed.
HIGH PERFORMANCE

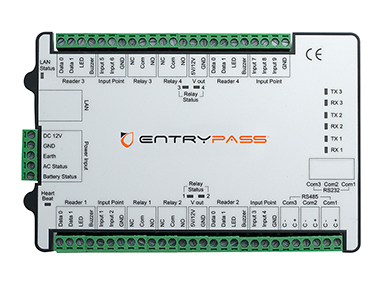

Based on the latest HCB (Hybrid Compact Board), S3400 is a high reliability, high efficiency and highly integrated intelligent multi-application control panel targeted for physical access control industry. It features a 32bits Freescale ColdFire microcontroller running at 60MHz, this control panel can fulfill most demanding requirement in physical access control environment.
Feature Highlight
Mixed Profile Operation
Event Based Triggering
Support Future Add-On Module
User Counting (Card Holder / Car Park)
Support 30,000 Users And 80,000 Event MemorySupport Single Doors / 2 Doors / 4-In doors
Support Car Park Mode
Support Dynamic Reader Location
Compatible with various reader technologies
Dynamic Storage Allocation
Dynamic Operation Profile
Specification
| Hardware | Description |
|---|---|
| MCU | 32bits @ 60MHz |
| Memory | 256K Flash Memory 32K SRAM (Buffer) 64Mbits Non-Volatile SPI Flash Memory (Storage) |
| Card holder | 30,000 |
| Event Transaction | 80,000 |
| Digital/Supervise Inputs | Max. 8, User configurable (Door Sensor/Request-To-Exit/Fire Input/General Purpose) |
| Digital Output | Max. 4 Dry contact Relay |
| Onboard Real Time Clock | Yes |
| Serial Communication Port | RS232/RS485 User Configurable |
| Power Protection | Resettable Fuse - 2.5A |
| Surge Protection | TVS - Up to 15KVA |
| Onboard LED Control | Power / Communication / Event / Error |
| Onboard Buzzer | 1 |
| AC Fail Monitoring | Yes |
| Battery Monitoring | Yes (Firmware threshold control to shutdown control panel) |
| External Short Circuit Protection | At readers |
| Backup Battery | Yes, Apply to RTC only |
