Name of product
EntryPass Active Networks are designed to enhance highly customized and rapid ‘real-time’ changes to the underlying network operation. Brilliantly engineered with all the power you need to enable code-sending, minus unnecessary buffer time with its distributed architecture capable of processing access demand at the edge level without leveraging at the server end.
Key Features
DOOR INTERLOCKING
2 In/Out door or 4-In doors interlocking within the control panel , no external wiring is needed. Cross-board interlocking is achievable by checking the interlocking signal coming from second control panel before granting the accessibility to the local control panel.
DYNAMIC STORAGE ALLOCATION (DSA)
DSA empower system administrator to modify the factory preset card holder and event storage database whenever necessary. Result of such modification leads a more personalized usage of the control panel memory whenever needed.
HIGH PERFORMANCE

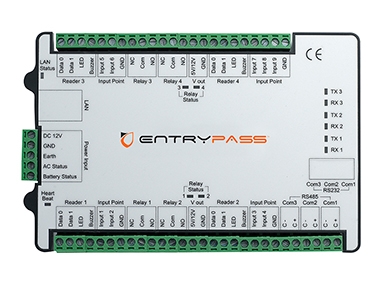

Based on the latest HCB (Hybrid Compact Board), N5400 is a high reliability, high efficiency and highly integrated intelligent multi-application control panel targeted for physical access control industry. It features a 32bits Freescale ColdFire microcontroller running at 60MHz, this control panel can fulfill most demanding requirement in physical access control environment.
Feature Highlight
Unlimited Access Level
Onboard & Cross-Board Interlocking
User Counting (Card Holder / Car Park)
Reader Output Control
Dynamic Storage Allocation
Support 30,000 Users And 80,000 Event MemorySupport Single Doors / 2 Doors / 4-In doors
Support Dynamic Reader Location
Support Car Park Mode
Compatible with various reader technologies
ActiveTransmit & ActiveDownload
Peer To Peer Global Anti-Passback
Configurable Digital / Supervised inputs (8)
Specification
| Hardware | Description |
|---|---|
| MCU | 32bits @ 60MHz |
| Memory | 256K Flash Memory 32K SRAM (Buffer) 64Mbits Non-Volatile SPI Flash Memory (Storage) |
| Card holder | 30,000 |
| Event Transaction | 80,000 |
| Digital/Supervise Inputs | 8, User configurable (Door Sensor/Request-To-Exit/Fire Input/General Purpose) |
| Digital Output | Max. 4 Dry contact Relay |
| Network Communication Port | 1 - RJ-45 Self-Negotiate 10/100mbps |
| Power Protection | Resettable Fuse - 2.5A |
| Surge Protection | TVS - Up to 15KVA |
| Onboard LED Control | Power / Communication / LAN / Event / Error |
| AC Fail Monitoring | Yes |
| Battery Monitoring | Yes (Firmware threshold control to shutdown control panel) |
| External Short Circuit Protection | At readers |
| Backup Battery | Yes, Apply to RTC only |
