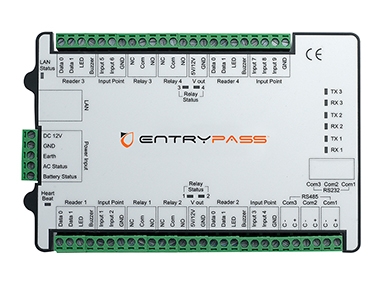

S3200 – TLT TECHNICAL EQUIPMENT CO., LTD.

status: Call

Produce: Entrypass
Type: Serial Communication

0₫

quantity

Product Description shipping policy Regulations change pay

Still an important and relevant system today, EntryPass Serial Communicators enables transmission of information between computers or between computers and peripheral devices one bit at a time over a single line, either synchronous or asynchronous. Our range of Serial Communication devices varies from integrated controllers with built-in readers to advanced 4 readers control panel and even hybrid input/output control panels to suit your specific needs and requirements.

HIGH PERFORMANCE
Based on the latest HCB (Hybrid Compact Board), S3200 is a high reliability, high efficiency and highly integrated intelligent multi-application control panel targeted for physical access control industry. It features a 32bits Freescale ColdFire microcontroller running at 60MHz, this control panel can fulfill most demanding requirement in physical access control environment.

DOOR INTERLOCKING
2 In doors interlocking within the control panel, no external wiring is needed. Cross-board interlocking is achievable by acquiring the interlocking signal coming from second control panel before granting the accessibility to the local access.

DYNAMIC STORAGE ALLOCATION (DSA)
DSA empower system administrator to modify the factory preset card holder and event storage database whenever necessary. Result of such modification leads a more personalized usage of the control panel whenever needed.

Feature Highlight
Mixed Profile Operation
Event Based Triggering
Support Future Add-On Module
User Counting (Card Holder / Car Park)
Support 30,000 Users And 80,000 Event MemorySupport Single / 2-In doors
Support Car Park Mode
Compatible with various reader technologies
Dynamic Storage Allocation
Dynamic Operation Profile

Specification

HARDWARE	DESCRIPTION
MCU	32bits @ 60MHz
Memory	256K Flash Memory 32K SRAM (Buffer) 64Mbits Non-Volatile SPI Flash Memory (Storage)
Card holder	30,000
Event Transaction	80,000
Digital/Supervise Inputs	Max. 8, User conﬁgurable (Door Sensor/Request-To-Exit/Fire Input/General Purpose)
Digital Output	Max. 4 Dry contact Relay
Onboard Real Time Clock	Yes
Serial Communication Port	RS232/RS485 User Conﬁgurable
Power Protection	Resettable Fuse - 2.5A
Surge Protection	TVS - Up to 15KVA
Onboard LED Control	Power / Communication / Event / Error
Onboard Buzzer	1
AC Fail Monitoring	Yes
Battery Monitoring	Yes (Firmware threshold control to shutdown control panel)
External Short Circuit Protection	At readers
Backup Battery	Yes, Apply to RTC only
