Name of product
EntryPass Active Networks are designed to enhance highly customized and rapid ‘real-time’ changes to the underlying network operation. Brilliantly engineered with all the power you need to enable code-sending, minus unnecessary buffer time with its distributed architecture capable of processing access demand at the edge level without leveraging at the server end.
Key Features
DOOR INTERLOCKING
2 In doors interlocking within the control panel, no external wiring is needed. Cross-board interlocking is achievable by checking the interlocking signal coming from second control panel before granting the accessibility to the local control panel.
DYNAMIC STORAGE ALLOCATION (DSA)
Rather than keeping the event transaction in the memory awaiting for the host server to poll, HCB based network control panel actively transmit the event back as it occurred. This asynchronous communication also reduces the bandwidth requirement significantly when operates over the network.
HIGH PERFORMANCE

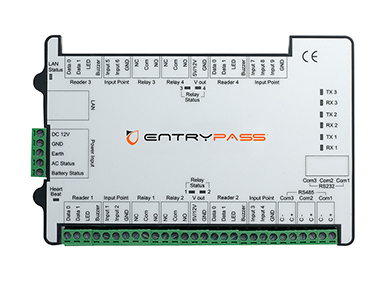

Based on the latest HCB (Hybrid Compact Board), N5100 is a high reliability, high efficiency and highly integrated intelligent multi-application control panel targeted for physical access control industry. It features a 32bits Freescale ColdFire microcontroller running at 60MHz, this control panel can fulfill most demanding requirement in physical access control environment.
Feature Highlight
Quick Terminal Plug-in Connectors
Firmware Upgrade via Server
Reader Output Control
Onboard & Cross-Board Door Interlocking
Support 3,000 Users And 10,000 Event MemorySupport Single / 2-In doors
Support Car Park Mode
Compatible with various reader technologies
ActiveTransmit & ActiveDownload
Peer To Peer Global Anti-Passback
Configurable Digital / Supervised inputs (4)
Specification
| HARDWARE | DESCRIPTION |
|---|---|
| MCU | 32bits @ 60MHz |
| Memory | 256K Flash Memory 32K SRAM (Buffer) 64Mbits Non-Volatile SPI Flash Memory (Storage) |
| Card holder | 3,000 |
| Event Transaction | 10,000 |
| Digital/Supervise Inputs | 4, User configurable (Door Sensor/Request-To-Exit/Fire Input/General Purpose) |
| Digital Output | Max. 2 Dry contact Relay |
| Network Communication Port | 1 - RJ-45 Self-Negotiate 10/100mbps |
| Power Protection | Resettable Fuse - 2.5A |
| Surge Protection | TVS - Up to 15KVA |
| Onboard LED Control | Power / Communication / LAN / Event / Error |
| AC Fail Monitoring | Yes |
| Battery Monitoring | Yes (Firmware threshold control to shutdown control panel) |
| External Short Circuit Protection | At readers |
| Backup Battery | Yes, Apply to RTC only |
