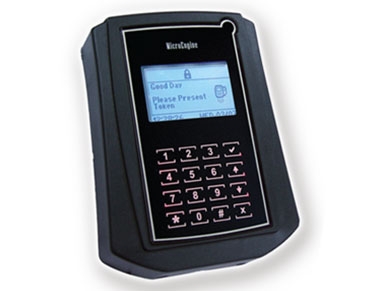

XP-M1000X is a Standalone Proximity Card Reader and Controller with Keypad and LCD Display. It can connect to an Exit Reader XP-RDPRX. The system supports up to 1,000 card users with 10,000 transaction records in its memory for Time Control (Time Attendant Mode).

No	Features	Functions
1.	Card User Memory	1,000 (2,000 in Car Park Access Mode)
2.	Transaction Records	10,000 (5,000 in Car Park Access Mode)
3.	Single Unit Reader, Keypad & Controller	Yes
4.	Build-In Card Reader	Yes – EM Card (Mifare Card Model Available)
5.	Access Operation Mode	Card Only, PIN Only, Card + PIN
6.	Fingerprint Template Capacity 1:N	No
7.	Display	2×16 Character LCD with BackLight
8.	Keypad	Epoxy Coated High Durability Keypad
9.	Time Set & Time Zone	50
10.	Holiday Dates	30
11.	Auto PIN	10 Sets
12.	Built-in Real Time Clock with Battery	Yes
13.	Car Park Mode External Entry Reader	Yes
14.	Exit Reader	Yes
15.	Exit Push Button	Yes – with Time Zone Control
16.	Support Wiegand 26-bit Reader	Yes
17.	Anti-Passback	Yes
18.	Controller Operation Mode	Access Control, Time Attendance, Car Park
19.	Supports Programming Through Keypad  & LCD at the Reader	Yes
20.	Lock Control, Door Sensor & Exit Button Input	Yes – Through MAS-RBS Located Inside the Door
21.	Configurable Lock Release Time	Yes – 0-99 secs.
22.	Configurable Door Open Time	Yes – 0-99 secs.
23.	Auto Lock Release Time Zone	Yes
24.	Sensor & Output	Yes – with External MiO-44, 4 In 4 Out Card
25.	Data Flash Memory	Yes
26.	Onboard Buzzer	Yes
27.	Communication Ports	RS232 / RS485
28.	Can be Linked to PC for Software Control	Yes
29.	Power	12VDC
30.	Dimension	152mm (H) x 122mm (W) x 32mm (D)
