XP-GT3200L Access Control System

status: Call

Produce: Microengine
Type: Access Control

0₫

quantity

Product Description shipping policy Regulations change pay

The XP-GT3200L Access Control System is designed to meet the high standards required in security for today and in the future. Attached with the fingerprint verification unit, the XP-GT3200L is able to cater for different levels of security needs and applications. The user may opt to install a card identification first and still have the option to add the fingerprint verification when the need arises.

The XP-GT3200L itself boast a rich suit of features and capabilities. Built with high density memory offered by flash technologies, it can cater to a card user capacity of up to 3,200 and transaction record capacity of up to 20,000 to cater to applications ranging from residential, commercial, industrial and even public sectors. 99 numbers of Time Set and Time Zone provides the user with the flexibility to control the access level of each user up to the minute. Its capability to offer different features when operating under Door Access and Time attendance also enables it to provide a more complete solution under these circumstances.

Features

No	Features	Functions
1.	Card User Memory	3,200
2.	Transaction Records	20,000
3.	Single Unit Reader, Keypad & Controller	Yes
4.	Build-In Card Reader	Yes – EM Card (Mifare Card Model Available)
5.	Access Operation Mode	Card Only, Card + PIN, Fingerprint Card + Fingerprint, PIN + Fingerprint Card + PIN + Fingerprint
6.	Fingerprint Template Capacity 1:N	3200 1:3200
7.	Display	128 x 64 Graphic Display with Back Light
8.	Keypad	Touch Sense Keypad with Backlight
9.	Time Set & Time Zone	Yes (10 set)
10.	Holiday Dates	30
11.	Auto PIN	Not Available
12.	Built-in Real Time Clock with Battery	Yes
13.	Car Park Mode External Entry Reader	No
14.	Exit Reader	Yes – Use MAS-RBT to connect the Entry and Exit Unit
15.	Exit Push Button	Yes – with Time Zone Control
16.	Support Wiegand 26-bit Reader	Yes
17.	Anti-Passback	Yes
18.	Controller Operation Mode	Access Control Mode
19.	Supports Programming Through Keypad & LCD at the Reader	Yes
20.	Lock Control, Door Sensor & Exit Button Input	Yes – Through MAS-RBS Located Inside the Door
21.	Configurable Lock Release Time	Yes – 0-99 secs.
22.	Configurable Door Open Time	Yes – 0-99 secs.
23.	Auto Lock Release Time Zone	Yes
24.	Sensor & Output	No
25.	Data Flash Memory	32MBit
26.	Onboard Buzzer	Yes
27.	Communication Ports	RS485 / LAN
28.	Can be Linked to PC for Software Control	Yes
29.	Power	12VDC
30.	Dimension	131mm (H) x 158mm (W) x 65mm (D)

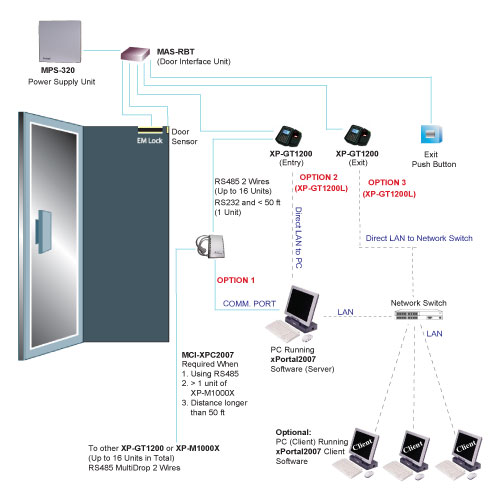

Configuration Diagram
