Name of product
EXAMPLE:

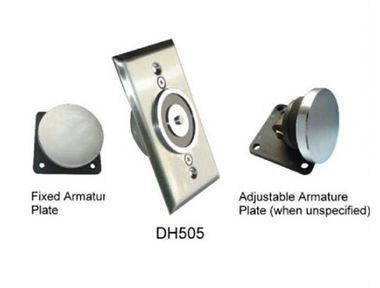

DH505 – Wall flush mounted, w/adjustable armature plate
DH505S - Wall flush mounted, w/adjustable armature plate, monitored
DH505F - Wall flush mounted, w/fixed armature plate
DH505 – Wall flush mounted, w/adjustable armature plate
DH505S - Wall flush mounted, w/adjustable armature plate, monitored
DH505F - Wall flush mounted, w/fixed armature plate
FEATURES
。Suitable for fire escape doors in large-scale buildings
。It releases the armature plate to allow the door closer to close the door when a fire alarm or emergency is detected, to keep smoke in a limited area
。Wall flush mounted installation
。Adjustable,fixed,extended, or morticed armature plate
SPECIFICATIONS
。Dimensions: 120L x 76W x 30.5H mm
S-AP702(adjustable)(default) - 60L x 60W x 55.5H mm
S-AP702F(fixed) - 60L x 60W x 24H mm
S-AP702G(extended) - 60L x 60W x 93.6~102.6H mm
S-AP702E(morticed) - outer dia:Ø92mm, inner dia:Ø63.3mm, 24~28.7H mm
。Voltage: 12/24VDC
。Current draw: 100mA/12VDC, 50mA/24VDC
。Holding force: about 100lbs
。Built-in voltage spike suppressor
。Adjustable, fixed, extended, or morticed armature plate
。Sensor: optional
。No residual magnetism
。Suitable for fire escape doors in large-scale buildings
。It releases the armature plate to allow the door closer to close the door when a fire alarm or emergency is detected, to keep smoke in a limited area
。Wall flush mounted installation
。Adjustable,fixed,extended, or morticed armature plate
SPECIFICATIONS
。Dimensions: 120L x 76W x 30.5H mm
S-AP702(adjustable)(default) - 60L x 60W x 55.5H mm
S-AP702F(fixed) - 60L x 60W x 24H mm
S-AP702G(extended) - 60L x 60W x 93.6~102.6H mm
S-AP702E(morticed) - outer dia:Ø92mm, inner dia:Ø63.3mm, 24~28.7H mm
。Voltage: 12/24VDC
。Current draw: 100mA/12VDC, 50mA/24VDC
。Holding force: about 100lbs
。Built-in voltage spike suppressor
。Adjustable, fixed, extended, or morticed armature plate
。Sensor: optional
。No residual magnetism
